Accessories

Ladder Assemblies

Ladder Assemblies

Poly Processing’s tank ladders are available in heights from 6 to 20 feet, depending on the tank application. To determine height, ladder height equals height to top of manway rounded to the nearest foot. If height of ladder exceeds the height of the manway, subtract 1 foot.

  • Ladders are available in mild steel as well as FRP construction.
  • All ladders meet OSHA requirements.
  • Ladders are not offered on all tanks due to safety requirements. Approved systems are noted with the appropriate ladder height in the distributor price list.
  • Cages range from 7 to 8 feet and extend 4 feet above the top rung of the ladder.

Tanks with a center manway will have the additional cost of a platform to reach the ladder.

Drawings

Chemical Storage Tank Ladders and Safety

Heat Pads and Insulation

Poly Processing’s tank heating systems are specifically designed for temperature maintenance of polyethylene tanks. SilcoPad® tank heating systems maintain a desired product temperature, not to exceed 100 degrees F.

  • Each heating system consists of tank heating pad(s) and a temperature controller. The quantity and type of SilcoPad® tank heating pads required is determined by the size of the tank, the desired temperature maintenance and environmental conditions.
  • Tanks are available with standard heating systems with a Delta T of 30, 60 and 100 degrees F.
  • Tanks are typically supplied with the heating panels and a controller installed by Poly Processing. The only field connection required is a power supply to the heating system.

For technical information on poly tank heating pads and insulation, download the guide below.

Download the Heat Maintenance System Information Sheet

More information on Heat Maintenance Systems Download the Guide Here


Please contact our customer support staff if HT & I is required on a 14-foot-diameter tank.

Drawings

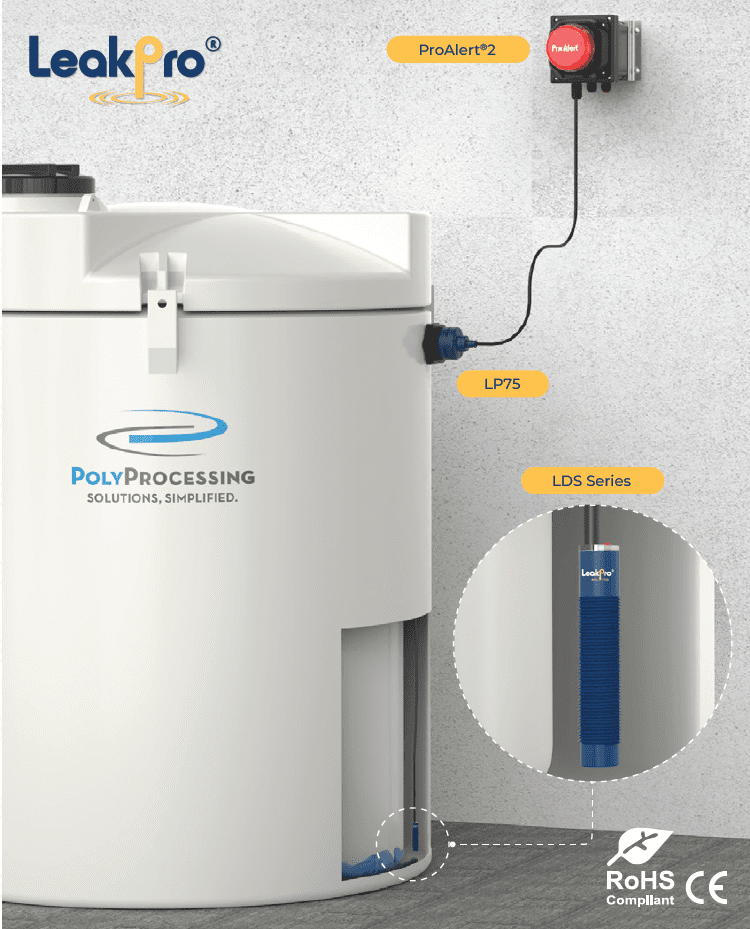

Poly Level Leak Detection Alarm System

The Poly Level Leak Detection Alarm System is an excellent choice for leak detection in secondary containment tanks. It features:

  • High Intensity Red Alarm Light
  • 108 dB Audible Alarm
  • Pulse to Relay Output
  • Rugged NEMA 4X Industrial Enclosure
  • External Wall Mounting Brackets
  • UL Listed Enclosure (CSA)
  • High Impact All Plastic Polycarbonate Shell
  • Small Foot Print – Compact Design
  • Excellent Chemical Resistance
  • Includes 6′ Power Cord + Watertight Cord

Download info sheet and drawing

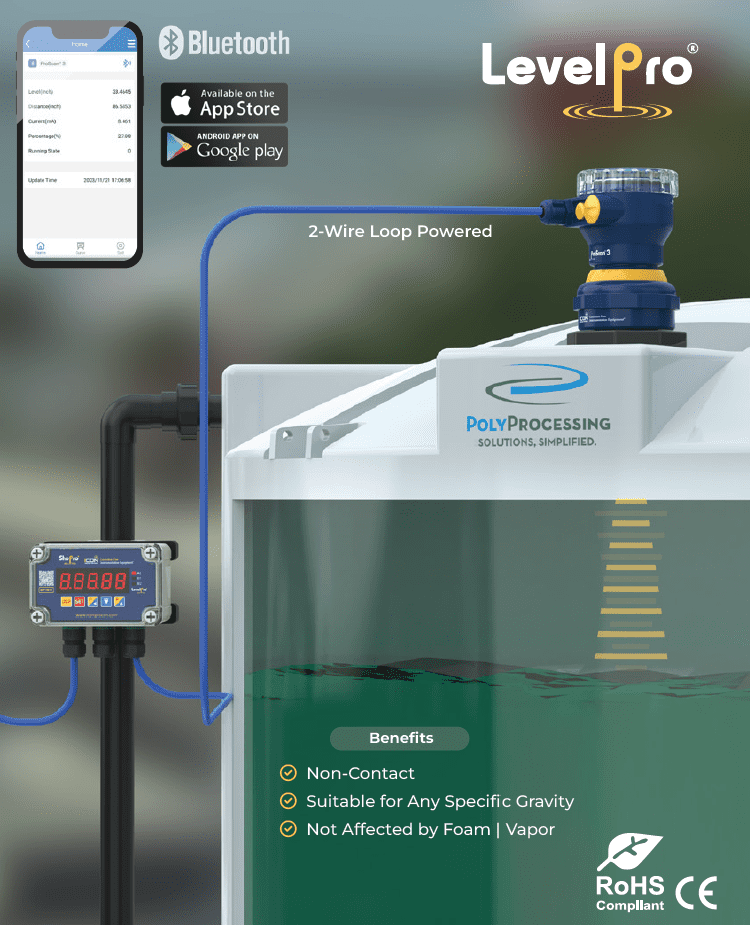

Ultrasonic Level Indicators

Poly Processing supplies a broad range of ultrasonic level indicators from major manufacturers. Please contact inside sales to determine which indicator is best suited for your application.

  • All Plastic NEMA 4X Enclosure
  • 2″ Threaded Polyethylene Connection
  • Lightweight GRP / High Impact Glass Reinforced Polycarbonate
  • Excellent Chemical Resistance
  • Weather Resistant

Download info sheet

Agitator and Mixer Brackets

Poly Processing offers multiple styles of agitator and mixer brackets to address various applications. We can custom design a solution to meet your specific needs. Styles include: free standing; small portable mixer attachments; or large brackets that integrate with the tank. Agitator and mixer brackets are available in mild steel – painted; mild steel – epoxy coated; mild steel – powder coated; and stainless steel.

  • Poly Processing can drill the holes for the mixer shafts at the factory if we have all of the details and the drawing details the hole sizes and locations.
  • Poly Processing can also install polyethylene baffles if required for your specific mixing application. Read our blog on baffles.

Drawings
